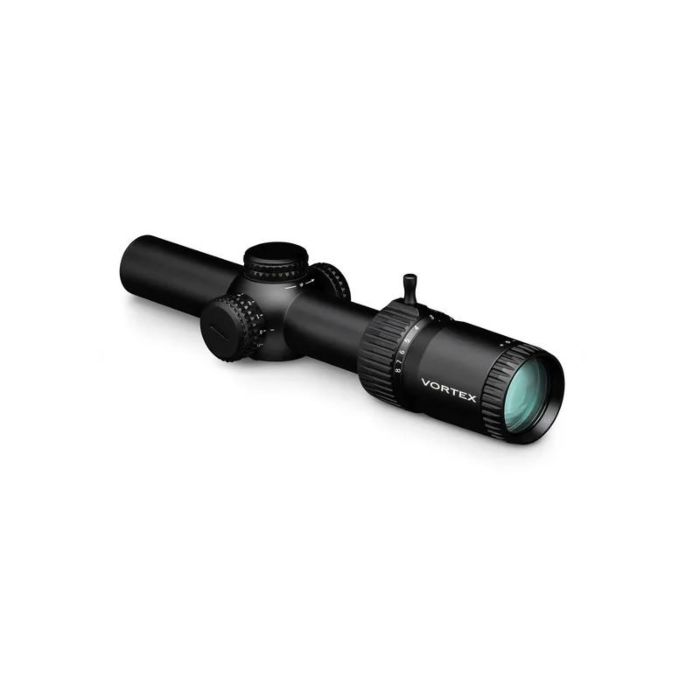

VortexOptics Strike Eagle 1-8x24 AR-BDC3-Moa Vortex Optics
Strike Eagle®
1-8x24
AR-BDC3 (MOA) Reticle | 30 mm Tube
Optimise the versatility and fast handling attributes of your AR with the redesigned Strike Eagle.
A true 1x on the low side, Strike Eagle zooms in to allow shooters to quickly engage near and far targets, and an AR-BDC3 reticle aids in rapid shooting by providing hold and reference from 0-600 yards.
Plus, with a threaded launch lever, you'll be on target even faster, shot after shot.
Strike Eagle 1-8x24 Dimensions (in inch)
| LENGTH | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L6 | |
| 10.0 | 2.8 | 1.8 | 6.4 | 3.5 | |
| HEIGHT | |
|---|---|
| H1 | H2 |
| 1.2 | 1.7 |
Objective lens diameter 24 mm
Pupillary extraction 3.5 inches
Field of view 109 -14.4 ft @100 yds
Tube diameter 30 mm
Low Capped Turret Style
Turret adjustment 1/2 MOA
Range for rotation 44 MOA
Max. elevation adjustment 140 MOA
Max. drift adjustment 140 MOA
Parallax Fixed @100 yds
Length 10.0 inches
Weight 17.6 oz
______________________
OPTICAL FEATURES
Illuminated Reticle allows excellent aiming in low light conditions
Fully Multi-Coated FMC lens treatment for the highest level of light transmission combined with multi-coating on all lens surfaces, anti-reflection and maximum brightness
SFP Second Focal Plane Reticle SFP Second Focal Plane, the reticle remains unchanged at different magnifications
Glass-Etched Reticle The reticle is protected between two layers of glass for optimum durability and reliability.
___________________________________________
CONSTRUCTION FEATURES
ArmorTek® Ultra-hard, scratch-resistant coating protects the outer lens from scratches, oil and dirt.
Shockproof Shockproof and resistant to the strongest recoil loads
Waterproof - IPX7 Designed to meet IPX7 waterproofing standards.
Fogproof Filled with Nitrogen Gas to prevent fogging from temperature fluctuations
Tube Size 30 mm diameter
Aircraft-Grade AluminiumConstructed from a solid block of Aircraft aluminium, robustness and rigidity
Single-Piece Tube Maximum alignment, visual optimisation, robustness and water resistance, these are the characteristics of single-piece tube construction.
__________
RETICLE
AR-BDC3 RETICLE
The illuminated and glass-engraved AR-BDC3 has been specifically tuned for the ballistic performance of common 5.56 loadings on AR-15s. The 1 MOA centre dot provides an accurate aiming point, while the surrounding 18 MOA horseshoe brings the eye to the centre faster for rapid target acquisition, and the BDC holds the target up to 650 metres.
